kafka之网络通信

网络通信

kafkaServer启动时，初始化启动了一个SocketServer服务，用于接受客户端的连接、处理客户端请求、发送响应等，同时创建一个KafkaRequestHandlerPool用于管理KafkaRequestHandler。

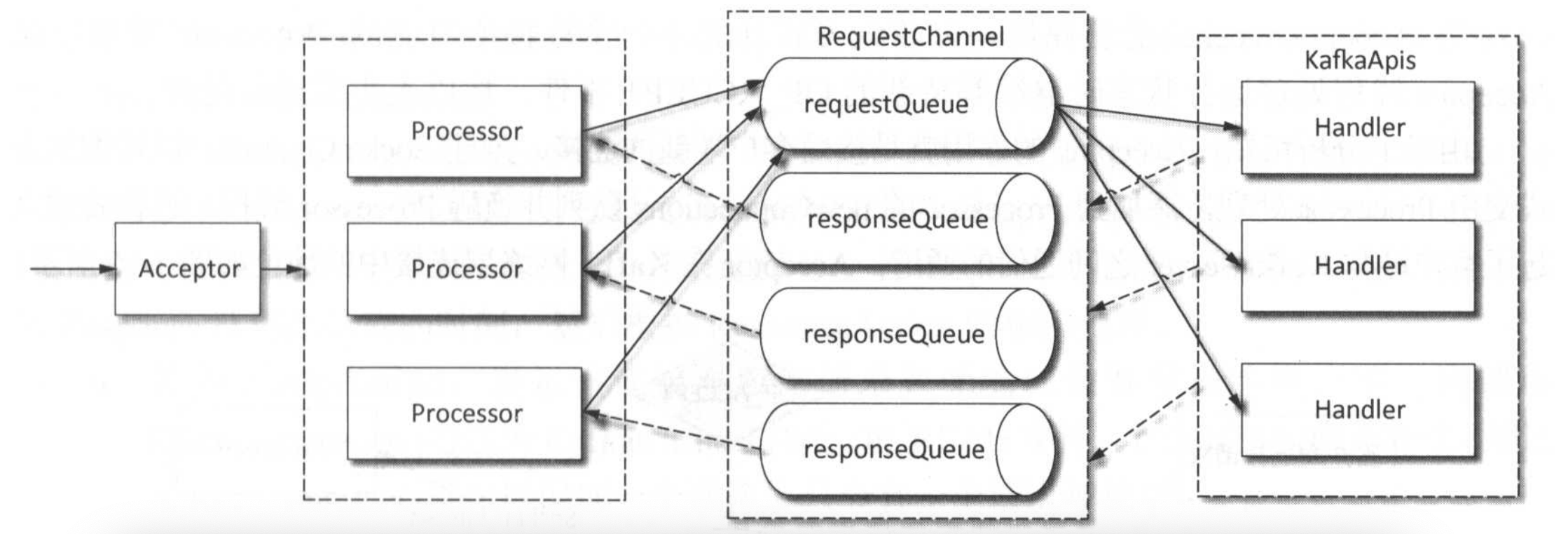

SocketServer是基于Java NIO实现的网络通信组件，线程模型为：一个Acceptor线程负责接收客户端所有的连接；{num.network.threads}个Processor线程，每个Processor有多个Selector，负责从每个连接中读取请求；{num.io.threads}个KafkaRequestHandler线程处理请求，并将产生的请求返回给Processor线程。

KafkaRequestHandler是由KafkaRequestHandlerPool管理，在Processor和KafkaRequestHandler之间通过RequestChannel来缓冲请求，每个KafkaRequestHandler从RequestChannel.requestQueue接受RequestChannel.Request，并把Request交由KafkaApis的handle()方法处理，经处理后把对应的Response存进RequestChannel.responseQueues队列

Acceptor

broker会在它所监听的每一个端口运行一个Acceptor线程，Acceptor线程会采用轮询的方式将入栈请求公平的发送到网络线程池Processor中。

private[kafka] class Acceptor(val endPoint: EndPoint,
                              val sendBufferSize: Int,
                              val recvBufferSize: Int,
                              brokerId: Int,
                              connectionQuotas: ConnectionQuotas) extends AbstractServerThread(connectionQuotas) with KafkaMetricsGroup

其继承了AbstractServerThread，是一个线程类

def run() {
  // 注册SelectionKey.OP_ACCEPT事件
  serverChannel.register(nioSelector, SelectionKey.OP_ACCEPT)
  startupComplete()
  try {
    var currentProcessor = 0
    while (isRunning) {
      try {
        val ready = nioSelector.select(500)
        if (ready > 0) {
          val keys = nioSelector.selectedKeys()
          val iter = keys.iterator()
          while (iter.hasNext && isRunning) {
            try {
              val key = iter.next
              iter.remove()
              if (key.isAcceptable) {
                val processor = synchronized {
                  currentProcessor = currentProcessor % processors.size
                  processors(currentProcessor)
                }
                // 交给Processor处理
                accept(key, processor)
              } else
                throw new IllegalStateException("Unrecognized key state for acceptor thread.")

              // round robin to the next processor thread, mod(numProcessors) will be done later
              currentProcessor = currentProcessor + 1
            } catch {
              case e: Throwable => error("Error while accepting connection", e)
            }
          }
        }
      }
      catch {
        // We catch all the throwables to prevent the acceptor thread from exiting on exceptions due
        // to a select operation on a specific channel or a bad request. We don't want
        // the broker to stop responding to requests from other clients in these scenarios.
        case e: ControlThrowable => throw e
        case e: Throwable => error("Error occurred", e)
      }
    }
  } finally {
    debug("Closing server socket and selector.")
    CoreUtils.swallow(serverChannel.close(), this, Level.ERROR)
    CoreUtils.swallow(nioSelector.close(), this, Level.ERROR)
    shutdownComplete()
  }
}

Processor

网络线程池Processor接收到客户和其他broker发送来的消息后，会把消息放入到请求队列中，然后由IO线程池进行处理

private[kafka] class Processor(val id: Int,
                               time: Time,
                               maxRequestSize: Int,
                               requestChannel: RequestChannel,
                               connectionQuotas: ConnectionQuotas,
                               connectionsMaxIdleMs: Long,
                               failedAuthenticationDelayMs: Int,
                               listenerName: ListenerName,
                               securityProtocol: SecurityProtocol,
                               config: KafkaConfig,
                               metrics: Metrics,
                               credentialProvider: CredentialProvider,
                               memoryPool: MemoryPool,
                               logContext: LogContext) extends AbstractServerThread(connectionQuotas) with KafkaMetricsGroup

Processor继承了AbstractServerThread，是一个线程类

override def run() {
  // 使用CountDownLatch来唤醒阻塞线程
  startupComplete()
  try {
    while (isRunning) {
      try {
        // setup any new connections that have been queued up
        configureNewConnections()
        // register any new responses for writing
        // 处理Response
        processNewResponses()
        // 将已接收完成的数据包、发送成功的请求添加至selector维护的相应队列中completedReceives
        poll()
        // 处理已接受完成的数据包队列completedReceives
        processCompletedReceives()
        // 处理已发送完成的队列completedSends
        processCompletedSends()
        // 处理断开连接的队列disconnected
        processDisconnected()
      } catch {
        // We catch all the throwables here to prevent the processor thread from exiting. We do this because
        // letting a processor exit might cause a bigger impact on the broker. This behavior might need to be
        // reviewed if we see an exception that needs the entire broker to stop. Usually the exceptions thrown would
        // be either associated with a specific socket channel or a bad request. These exceptions are caught and
        // processed by the individual methods above which close the failing channel and continue processing other
        // channels. So this catch block should only ever see ControlThrowables.
        case e: Throwable => processException("Processor got uncaught exception.", e)
      }
    }
  } finally {
    debug("Closing selector - processor " + id)
    CoreUtils.swallow(closeAll(), this, Level.ERROR)
    shutdownComplete()
  }
}

RequestChannel

为了给Processor线程与Handler线程之间通信提供数据缓冲，是通信过程中Request与Response缓存的通道，是Processor与Handler线程交换数据的地方。

private val requestQueue = new ArrayBlockingQueue[BaseRequest](queueSize)

其内部是一个ArrayBlockingQueue队列用于缓存Processor添加的Request队列

KafkaRequestHandler

KafkaRequestHandlerPool实例化时会创建{num.io.threads}个KafkaRequestHandler线程来进行处理请求，也是实际处理请求的地方

def run() {
  while (!stopped) {
    // We use a single meter for aggregate idle percentage for the thread pool.
    // Since meter is calculated as total_recorded_value / time_window and
    // time_window is independent of the number of threads, each recorded idle
    // time should be discounted by # threads.
    val startSelectTime = time.nanoseconds
// 从requestChannel中读取Request
    val req = requestChannel.receiveRequest(300)
    val endTime = time.nanoseconds
    val idleTime = endTime - startSelectTime
    aggregateIdleMeter.mark(idleTime / totalHandlerThreads.get)

    req match {
      case RequestChannel.ShutdownRequest => // shutdown请求
        debug(s"Kafka request handler $id on broker $brokerId received shut down command")
        shutdownComplete.countDown()
        return

      case request: RequestChannel.Request => // 正常请求
        try {
          request.requestDequeueTimeNanos = endTime
          trace(s"Kafka request handler $id on broker $brokerId handling request $request")
          // 根据request.header.apiKey路由到不同的方法进行处理
          apis.handle(request)
        } catch {
          case e: FatalExitError =>
            shutdownComplete.countDown()
            Exit.exit(e.statusCode)
          case e: Throwable => error("Exception when handling request", e)
        } finally {
          request.releaseBuffer()
        }

      case null => // continue
    }
  }
  shutdownComplete.countDown()
}
